Progressive Stamping Electric Motor Laminations in China

As a progressive stamping manufacturer In China, Our commitment is to research and development high-efficient electric motor laminations. We have many years of progressive stamping products and manufacturing experience.

With a focus on technological innovation and quality craftsmanship, we are committed to providing you with motor lamination stacks that optimize energy conversion and electromagnetic efficiency.

Contact Us Now
progressive stamping die

Progressive Stamping Die Design And Manufacturing

The design and manufacturing of progressive stamping die is one of our core projects. Our skilled engineers meticulously craft stamping dies tailored to your specifications.

Though dies take a long time to build and cost higher, the motor rotor and stator laminations produced in this way have a perfect consistency.

In terms of materials, we use high-quality steel to manufacture progressive stamping dies, ensuring their longevity and performance.

Our experienced technicians also excel in die maintenance, implementing routine inspections and repairs to uphold the dies’ efficiency and extend their lifespan.

Additionally, we leverage advanced wire-EDM (Electrical Discharge Machining) and grinder equipment to ensure the utmost precision in the manufacturing process.

Progressive Stamping Process For Motor Cores

We excel in harnessing progressive die stamping production of electric motor cores. Our progressive stamping process is a testament to precision engineering and innovation, enabling us to create intricately detailed and high-performance motor laminations with unparalleled efficiency.

progressive stamping process

The process begins with a continuous silicon steel sheet entering the high-speed press machine; it has a series of dies to perform multiple operations. As the silicon steel sheet advances, the stamping machine works to cut, form, and shape each lamination.

The high-speed press, capable of stamping more than one hundred times per minute, progressive stamping is ideal for small but large-capacity generators and motor laminates. It can produce high quantities in a short period.

Besides, rivet integration can be carried out during the motor lamination stamping process. These rivets are located at the edge of the lamination. Once the stacks are stacked together, the rivets are compressed into the stack area, thus firmly locking each stack.

Segment Motor Core

We have a high-precision segment motor cores manufacturing process. Unlike traditional solid electric motor cores, our motor rotor and stator laminations are divided into individual segments or pieces, each with its unique shape. Then we assembled these segments to form the complete motor core.

Additionally, segment motor lamination stacks offer advantages in terms of weight reduction, heat dissipation, and flexibility in design. The segmented structure allows for better cooling and ventilation and easier assembly and disassembly, making it particularly useful in maintenance or repair applications.

T-Segment motor cores are commonly found in various industrial applications, especially motors requiring frequent maintenance or demanding operational conditions.

Segment Motor Core

High-Precision Electric Motor Cores In China

Motor rotor and stator laminations are produced that use the Progressive stamping manufacturing process, elevating the performance and efficiency of electric motors across diverse industries. It applies to appliances, industrial equipment, automotive,t aerospace, power tools, etc.

ceiling fan motor

ceiling fan motor

compressor motor

compressor motor

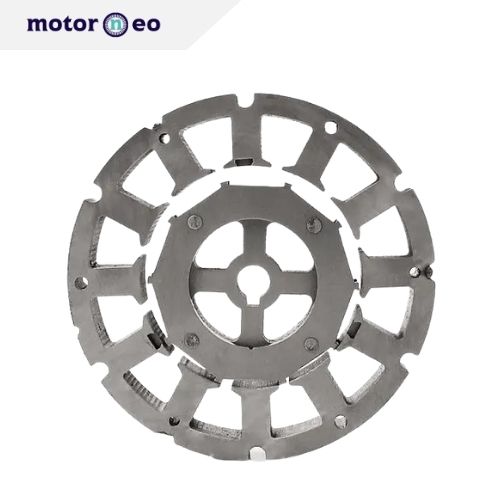

power tool motor

power tool motor

pump motor

pump motor

Quality Control For Electric Motor Laminations

Our facility implements a robust quality control process to ensure that every motor lamination leaving our production line meets the highest industry standards. We guarantee that our motor laminations are defect-free, consistent in performance, and ready to power various applications with reliability and efficiency.

quality control for progressive stamping

1

It begins with thorough inspections of raw materials, where we carefully assess the material composition and dimensions to ensure they adhere to specifications.

2

Our skilled technicians conduct in-process inspections throughout manufacturing to monitor the precision of stamping, forming, and cutting operations. We also utilize advanced measuring equipment to verify dimensional accuracy and tight tolerances.

3

Final inspections focus on visual and functional aspects of motor laminations, assessing features such as burrs, surface finish, and core alignment.

Our Advantages Of Stamping Motor Stator&Rotor

Choose us for progressive stamping, and you’ll benefit from a comprehensive package of advantages encompassing precision, efficiency, innovation, sustainability, and customer-centricity, all aimed at elevating your stamped components to new heights of excellence.

Increased Efficiency

Progressive stamping ensures precise and consistent manufacturing of stator and rotor laminations, leading to electric motors with improved overall efficiency and reduced energy losses.

Cost-Effectiveness

The high-speed and automated nature of stamping allows for the mass production of stator and rotor cores, resulting in cost savings due to reduced labor and material waste.

Optimal Precision

Our stamping process provides unmatched precision in shaping and forming each lamination, ensuring tight tolerances and alignment critical for optimal motor performance.

Reduced Lead Times

With high-speed presses and streamlined processes, progressive stamping significantly reduces the time required to produce stator and rotor cores。

Structural Integrity

The integration of rivets during the stamping process enhances the structural integrity of the stacked laminations, ensuring stability and alignment during motor operation.

High-Volume Production

Progressive stamping can handle high-volume production requirements efficiently, making it ideal for large-scale motor manufacturing.

Why Choose Us As Your Motor Laminations China Manufacturer?

visit the industry electric motor core factory

From design to manufacturing, we leverage cutting-edge technology and advanced equipment to ensure efficiency and consistency in our production processes.

We handle minor and large-scale orders with equal attention to detail and commitment to quality.

We have a proven track record of delivering high-quality motor laminations that meet and exceed industry standards.

Our team of experts possesses extensive knowledge and expertise in progressive stamping, winding, and assembly electrical motor lamination manufacturing, ensuring that every lamination we produce is precision-engineered to your exact specifications.

Choosing us as your stamping services manufacturer in China means partnering with a company dedicated to excellence, innovation, and customer satisfaction.

Materials Used In Industrial Motor Lamination

We commonly use electrical steel sheet(silicon or silicon steel ) material to manufacture stator and rotor laminations. It is characterized by its high silicon content, which reduces eddy current losses and improves the motor’s efficiency.

We have various thickness electrical steel grades, such as M-19, M-27, and M-36, each offering specific magnetic characteristics suitable for different motor designs. Some materials like nickel alloy or cobalt alloy may be used for specialized motor applications that demand specific magnetic properties.

progressive stamping material

Prototype Motor core Laminations Stacks

As leading motor lamination manufacturers, we specialize in crafting intricate prototype motor core lamination stacks. It embodies the perfect synergy of design, technology, and performance. Our expertise extends to advanced techniques such as wire EDM (Electrical Discharge Machining), allowing us to achieve unprecedented intricacy and accuracy in creating complex lamination shapes. We work closely with our clients to understand their requirements and provide customized prototype solutions.

Motor Core Laminations FAQs

Yes, progressive flushing can be customized to meet specific motor core designs and requirements. We can tailor the die design and process to create laminations for various motor types and sizes.

Research and Referrals: Conduct thorough online research to identify potential manufacturers.

Assess Experience and Expertise: Evaluate the manufacturer’s experience in progressive stamping, specifically in producing electric motor cores.

Capabilities and Equipment: Examine the manufacturer’s equipment, facilities, and technological capabilities.

Quality Assurance: Inquire about the manufacturer’s quality control processes. Certifications such as ISO 9001 or IATF 16949 are indicators of a commitment to quality.

Samples and References: Request samples of their previous work or existing products to evaluate their quality firsthand.

Visit the Facility: If possible, plan a visit to the manufacturer’s facility. This lets you see their operations, quality control measures, and work environment firsthand.

The main difference between progressive stamping and compound stamping lies in the complexity of the parts produced and the number of operations performed.

Progressive stamping is well-suited for high-volume production of simple to moderately complex parts.

Compound stamping produces parts with intricate shapes, multiple features, and higher complexity in a single operation.

The choice between the two methods depends on the specific design requirements, production volume, and cost considerations.

Rotary notching is generally not as efficient as progressive stamping for high-volume production due to the individual notching of each workpiece.

Let Us Design Your Progressive Stamping Electric Motor Cores

Are you seeking a motor core that delivers superior performance and unmatched efficiency? Specializing in progressive stamping of electric motor cores, our highly skilled engineers utilize cutting-edge technology to create precision-engineered laminations according to your unique requirements.

From concept to reality, we will design and manufacture motor cores to optimize performance, minimize energy loss and take your motor to new heights. Don’t miss the opportunity to revolutionize your electric motor with our custom progressive stamping solutions.
